A site plan showing the river manipulation, terrain, vegetation, circulation, water flow, communal recreation spaces, housing unit locations, and urban connections.

small site diagrams for portfolio2.jpg

Site plan design process.

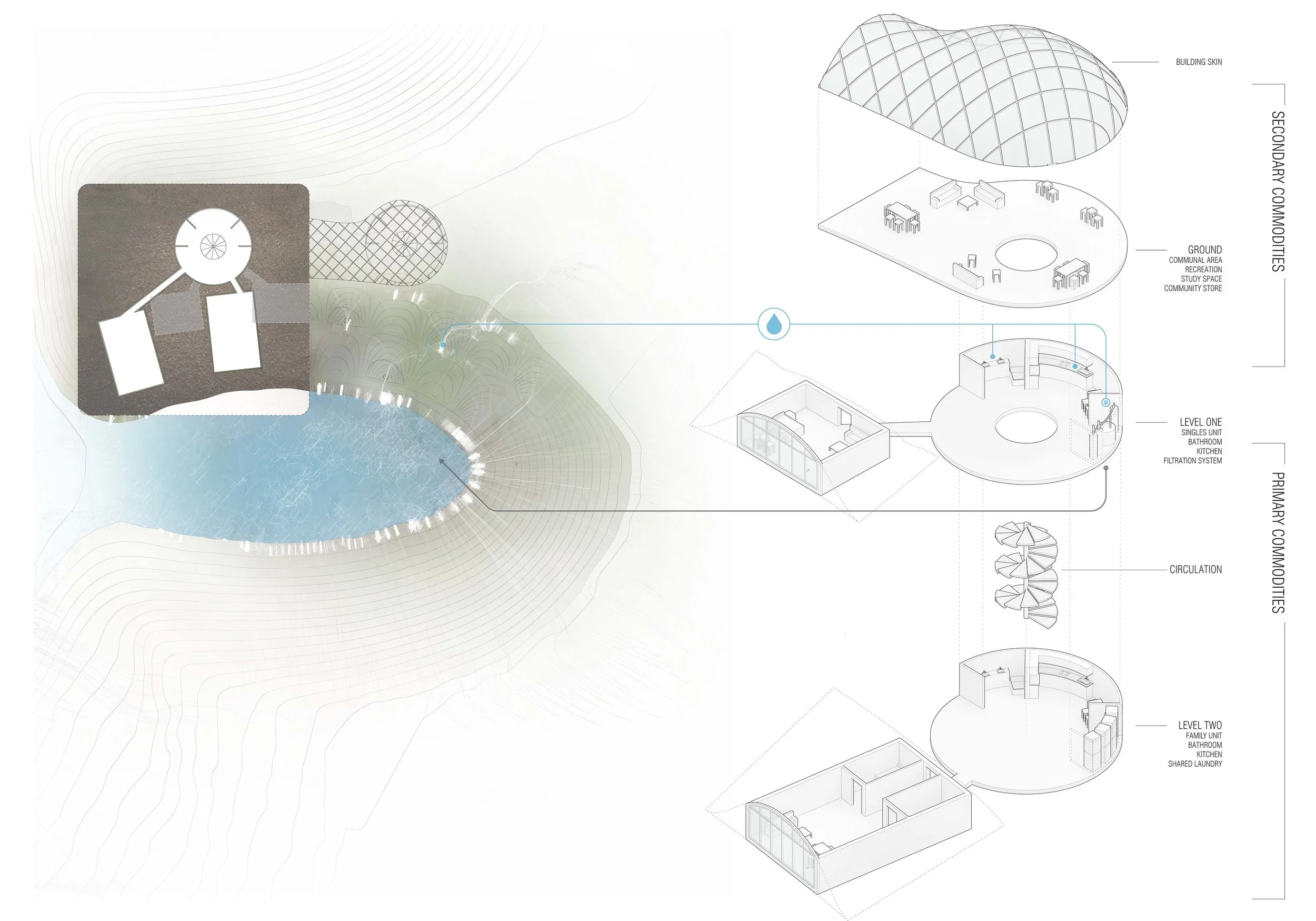

A diagram of the built design described by individual units, primary clusters, and secondary space as well as rainwater collection and filtrated use in the clusters.

A section through a basin, describing both the traditional, natural riparian zone and the built environment, including a unit, a cluster, and a recreational space.

Experiential rendering.

Chipboard model describing the underground workings, representing the units and primary clusters as voids in the earth.
